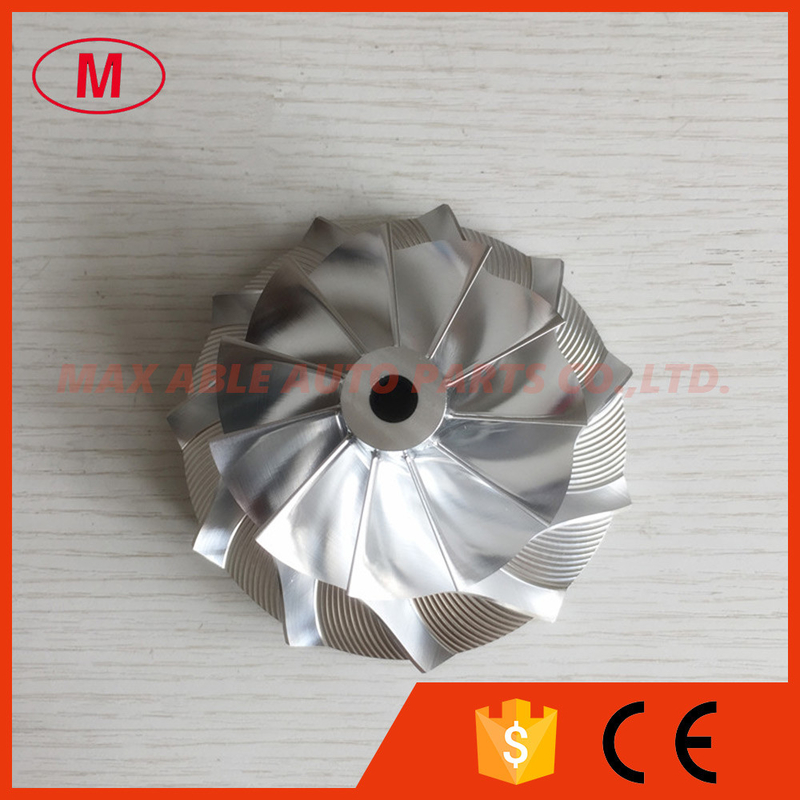

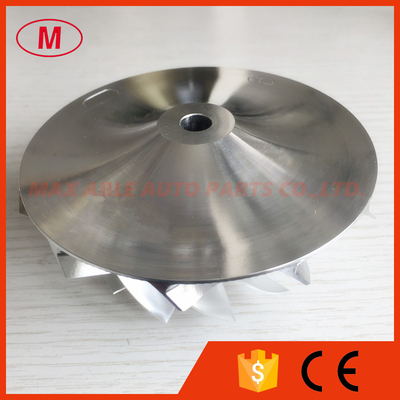

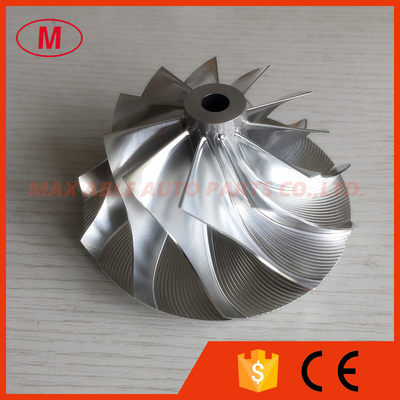

S300 171449 66.10/92.61mm 11+0 blades turbo Billet/milling/aluminum 2024 compressor wheel for S366

Brand Name:	NO
Model Number:	S300

Contact Now

Detailed Product Description

Size:	66.10/92.61mm	Type:	Turbochargers

1. MODEL:S300 forward

2.S300 171449 66.10/92.61mm 11+0 blades turbo Billet/milling/aluminum 2024 compressor wheel for S366

3.Size:

Nose diameter:17.02mm

Inducer:66.10mm

exducer:92.61mm

Tapered tip exducer:96.67mm

Tip height:7.24mm

Superback:6.95mm

bore size :8.01mm

Overall height:50.66mm

Trailing Angle:45

Cutback:6.0

Tapered tip Angle:18 degree

Blade height:38.18mm

11+0 blades forward

Fit for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
