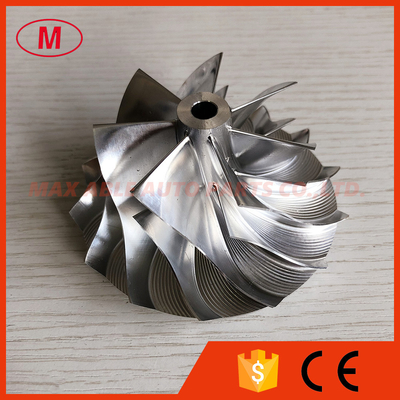

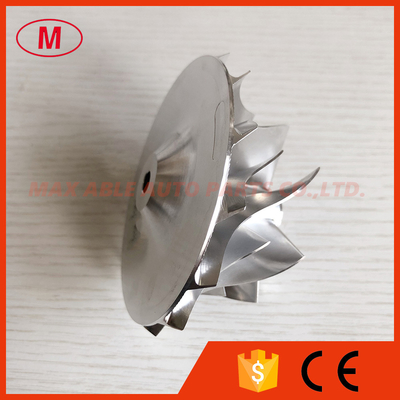

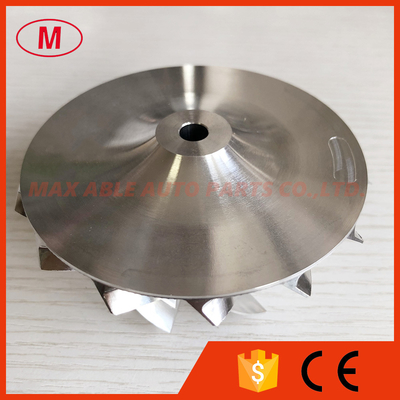

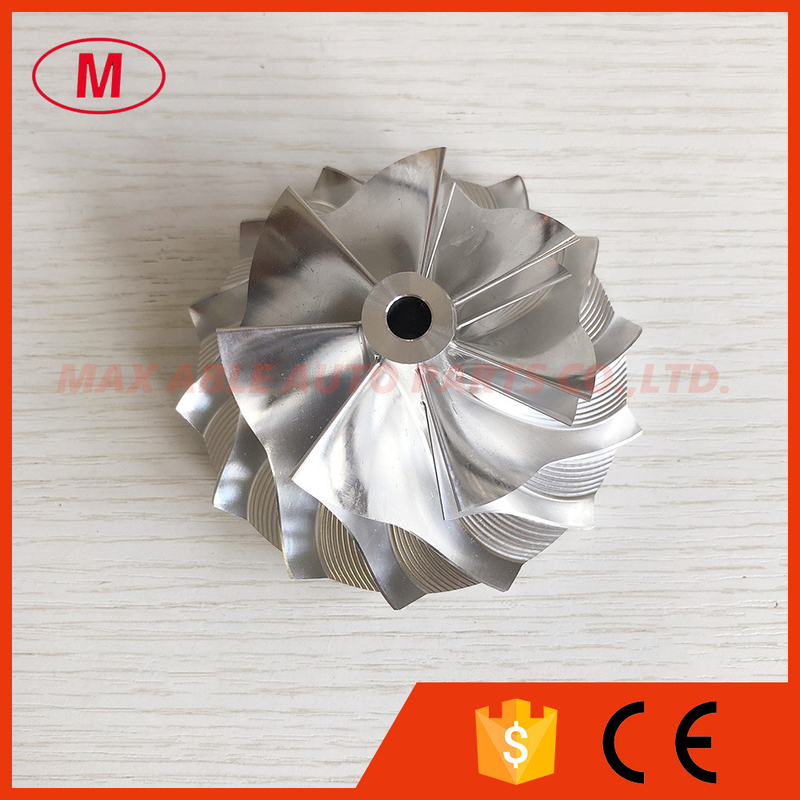

Name: S200 176218 7+7 blades 61.45/84.48mm high performance Turbo milling/aluminum 2618/billet compressor wheel for 170000
Brand: Max Able Auto Parts Co.,Ltd.
SKU: S200
Price: Negotiable USD
Availability: InStock

Home Products Billet compressor wheel

S200 176218 7+7 blades 61.45/84.48mm high performance Turbo milling/aluminum 2618/billet compressor wheel for 170000

Product Details:

Brand Name:	NO
Model Number:	S200

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

1. MODEL:S200 forward

2.S200 176218 7+7 blades 61.45/84.48mm high performance Turbo Billet/milling/aluminum 2618 compressor wheel for 170000/157-4229

3.Size:

Nose diameter:15.13mm

Inducer:61.45mm

exducer:84.48mm

Tapered tip exducer:90.37mm

Tip height:6.10mm

Superback:6.20mm

bore size :7.00mm

bore type:through

Overall height:46.45mm

Blades height:36.72mm

Cutback:0.0

Trailing Angle:45

Splitter height:24.10mm

Sp height angle:-15.70

7+7 blades

forward rotation

Tapered tip angle:30 degree

Fit for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
