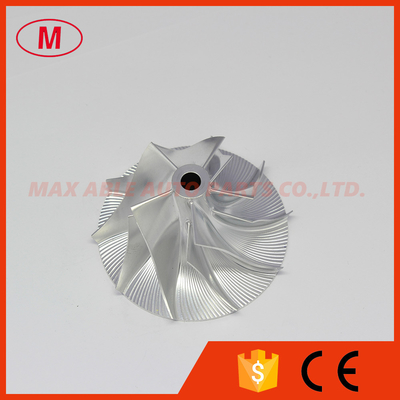

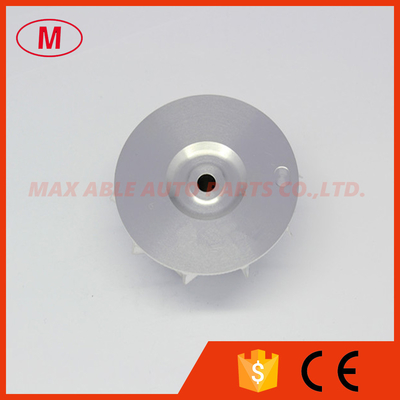

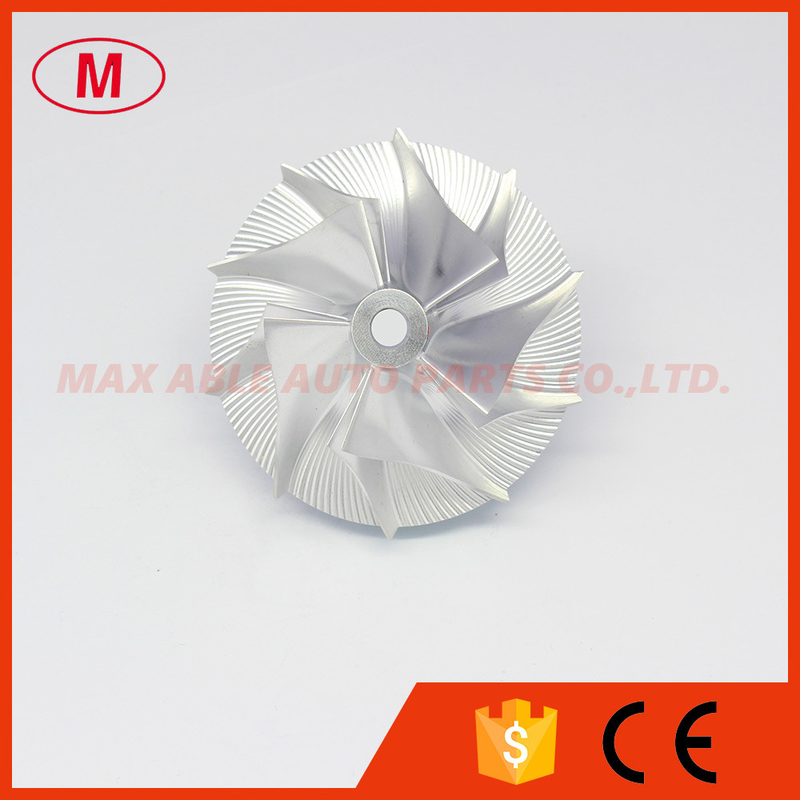

CT26 41.70/64.89mm 5+5 blades Turbo Billet/milling/aluminum 2024 compressor wheel for 17201-74010

Brand Name:	NO
Model Number:	CT26

Contact Now

Detailed Product Description

1. MODEL:CT26 forward

2.CT26 41.70/64.89mm 5+5 blades Turbo Billet/milling/aluminum 2024 compressor wheel for 17201-74010

3.Size:

Nose diameter:13.20mm

Inducer:41.70mm

exducer:64.89mm

Tapered tip exducer:68.91mm

Tip height:4.48mm

Superback:-1.37mm

bore size :6.50mm

Overall height:27.50mm

Cutback:0.0

Trailing Angle:60

Blade height:25.80mm

5+5 blades forward

Fit for OE compressor housing

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
