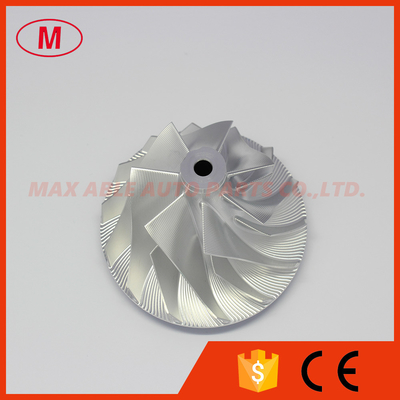

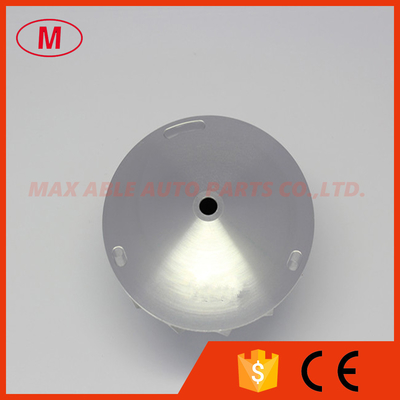

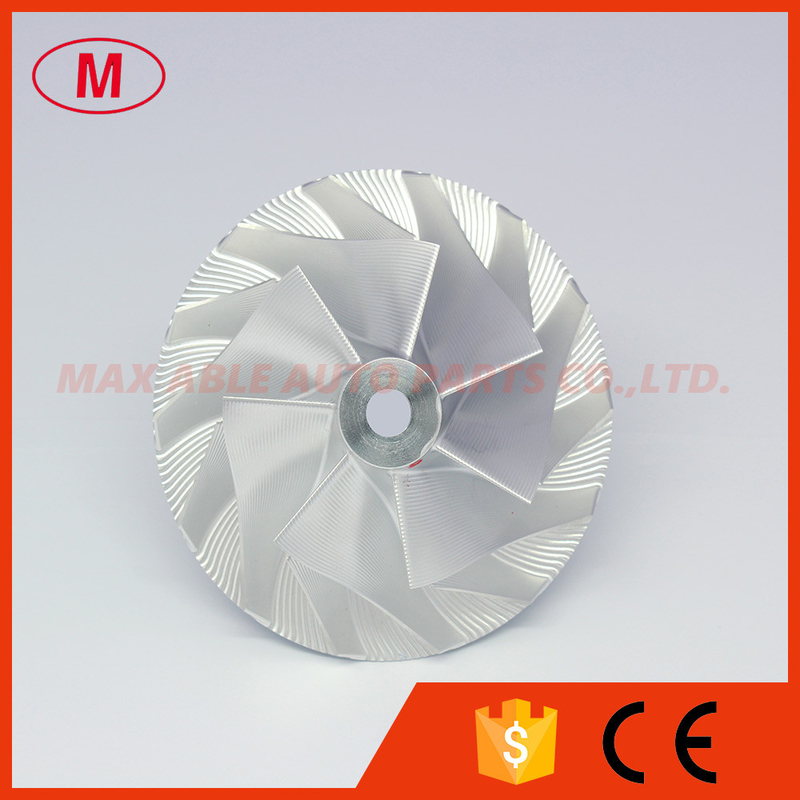

HX50 4035468 7+7 blades 67.05/99.00mm point milling Billet compressor wheel for 3599955/4040344/4046017/599996/4044200

Product Details:

Model Number:	HX50

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

Size:	46.50/59.94mm	Type:	Turbochargers

1.Model:HX50 foward

2.HX50 4035468 7+7 blades 67.05/99.00mm point milling turbo Billet/milling/aluminum 2024 compressor wheel for 3599955/4040344/4046017/599996/4044200/408886

3.Size:

Nose diameter:20.65mm

Inducer:67.05mm

exducer:99.00mm

Tip height:6.33mm

Superback:6.30mm

bore size :8.01mm

Overall height:45.00mm

Cutback:2.6

SP height Angle:-3.00

Splitter height:16.90mm

Trailing Angle:45

Blade height:31.12mm

7+7 blades forward

Fit for OE compressor housing

Tapered tip Angle:0 degree

Application:

3599955

4040344

4046017

599996

4044200

408886

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
