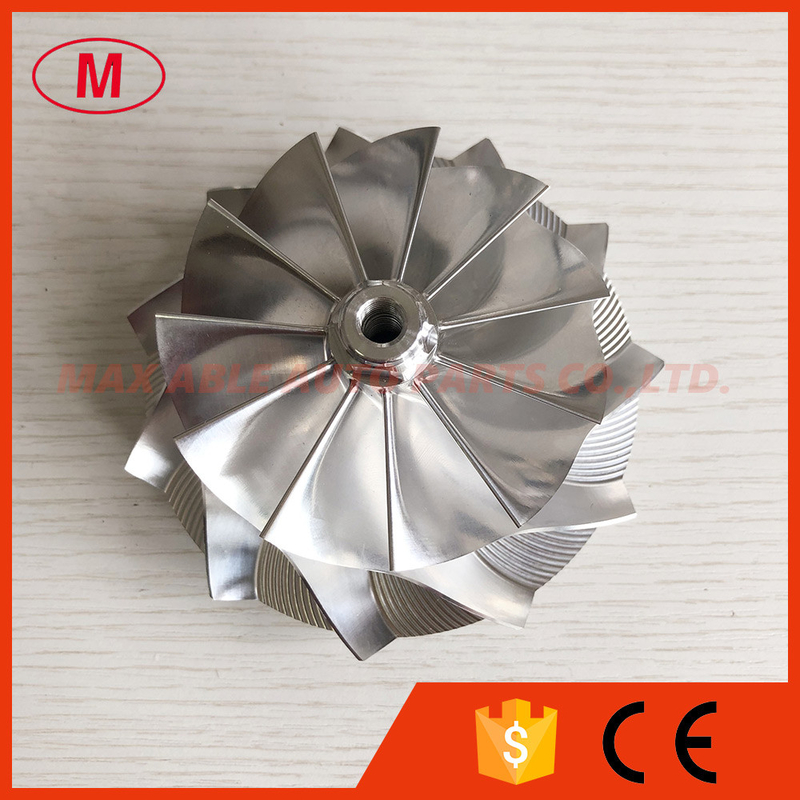

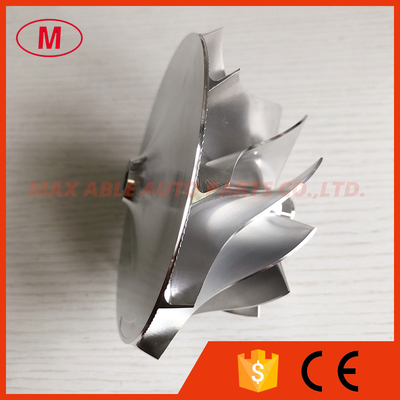

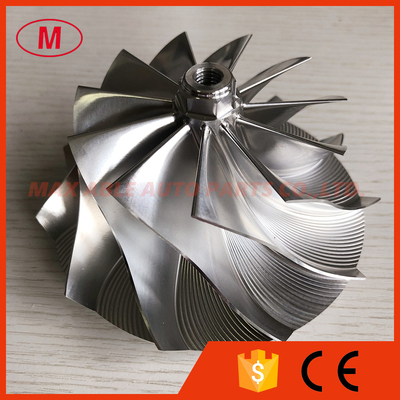

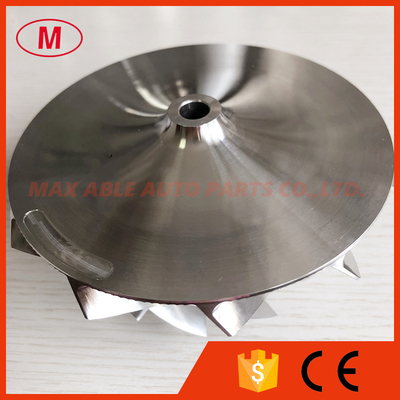

GTA4508R 11+0 blades 79.85/108.04mm high performance Billet/milling/aluminum 2618 compressor wheel for 800270-0001

Brand Name:	NO
Model Number:	GTA4508R

Contact Now

Detailed Product Description

Size66.92/99.01mm:	79.85/108.04mm	Type:	Turbochargers

1.Model:GTA4508R forward

2.GTA4508R 11+0 blades 79.85/108.04mm high performance Billet/milling/aluminum 2618 compressor wheel for 800270-0001/451888-0045

3.Size:

Nose diameter:18.97mm

Inducer:79.85mm

exducer:108.04mm

Tapered tip exducer:116.65mm

Tip height:8.45mm

Superback:9.52mm

bore size :8.25mm

Overall height:64.00mm

Cutback:0.0

Trailing Angle:50

Bore type:Threaded-M8x1.25LHT

Sp height Angle:0.00

Splitter Height:0.00

Blade height:44.72mm

11+0 blades forward

Fit for OE compressor housing

Tapered tip Angle:30 degree

Application:

800270-0001

451888-0045

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
