RHF5 898185-1951/898068-1970 35.55/52.50mm 6+6 blades point milling Billet/milling compressor wheel for CIFW / 4JJ1T

Brand Name:	NO
Model Number:	RHF5

Contact Now

Detailed Product Description

Size:	35.55/52.50mm	Type:	Turbochargers

1. MODEL: RHF5 forward

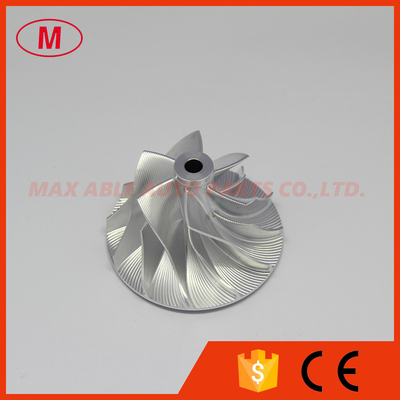

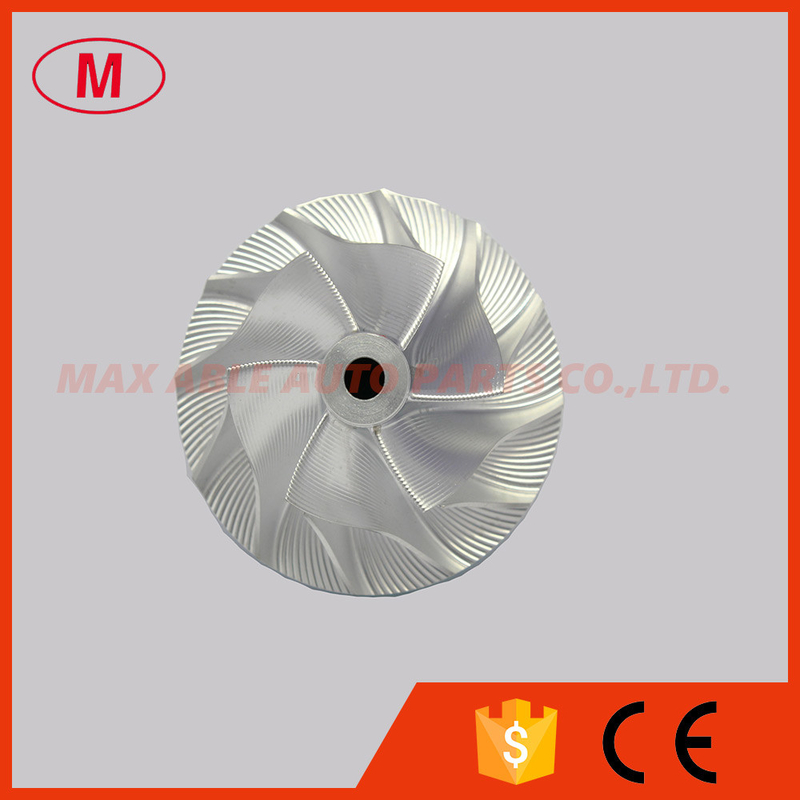

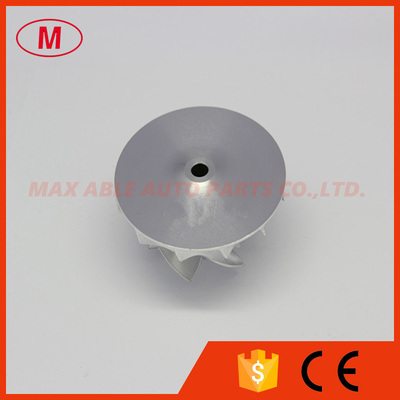

2.RHF5 898185-1951/898068-1970 35.55/52.50mm 6+6 blades point milling turbo Billet/milling/aluminum 2024 compressor wheel for CIFW / 4JJ1T /VA430131

3.Size:

Nose diameter:11.70mm

Inducer:35.55mm

exducer:52.50mm

Tip height:4.47mm

Superback:1.53mm

bore size :5.10mm

Overall height:26.50mm

Cutback:4.0

Trailing Angle:60

SP height Angle:5.00

Splitter height:12.32mm

Blade height:22.15mm

6+6 blades forward

It is for OE compressor housing

Tapered tip Angle:0 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
