| Brand Name: | NO |
| Model Number: | HC5A |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 86.89/127.00mm | Type: | Turbochargers |
|---|
1. MODEL:HC5A forward

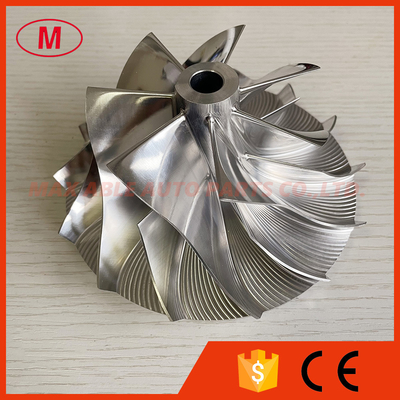

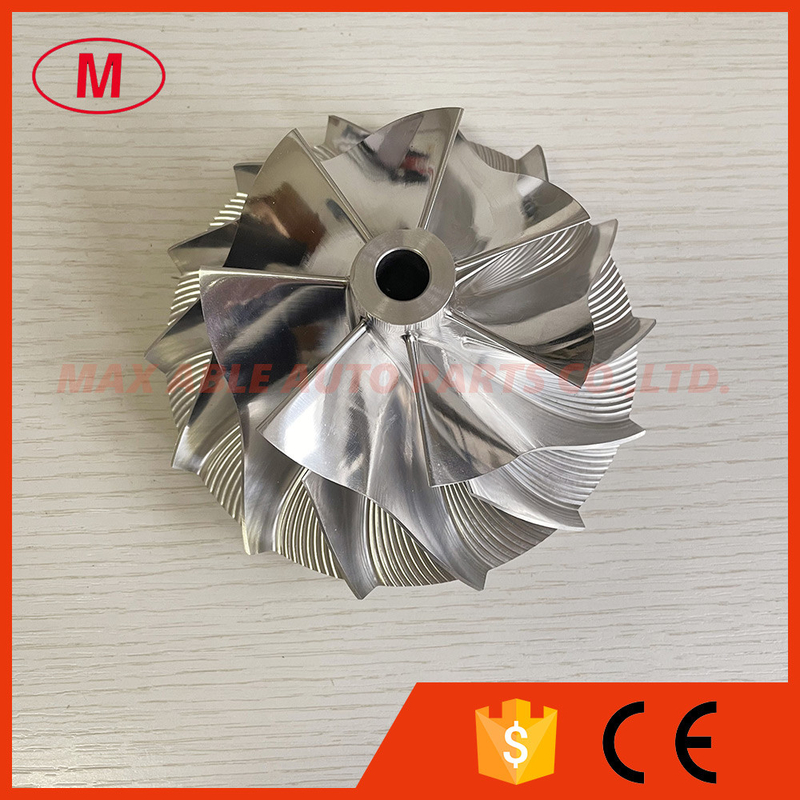

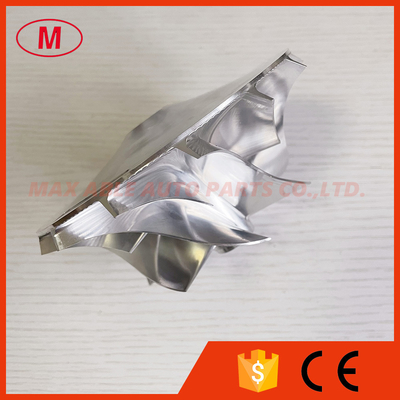

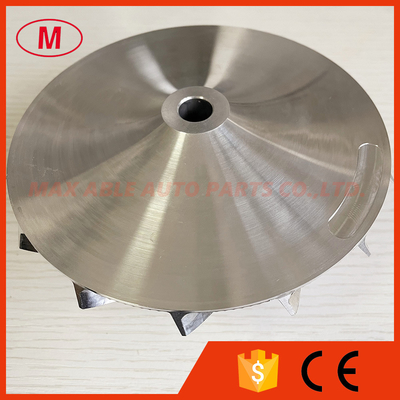

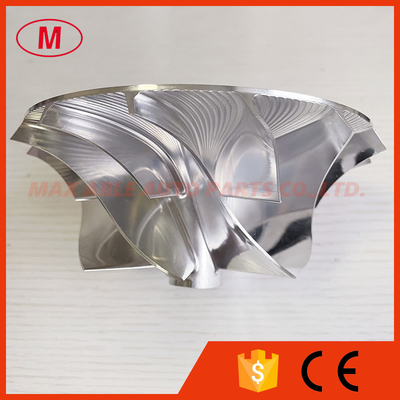

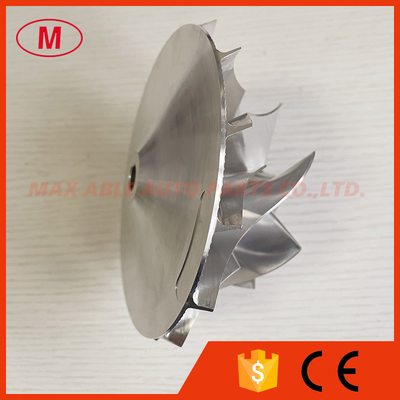

2.HC5A 3521919 86.89/127.00mm 7+7 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 3594043/3545702/3494209/3545509/3594209/3524549/3545531/4027084/3545510/3594199/3594214/3594211 Cummins Inc/Guascor/Perkins K19R/KTA19
3.Size:
Nose diamter:22.00mm
inducer:86.89mm
Exduder:127.00mm
Tapered tip exducer:134.66mm
Tip height:8.13mm
Superback:10.17mm
Overall height:66.93mm
bore size :11.12mm
Trailing Angle:60 degree
Cutback:0.0
Sp height angle:-6.40
Splitter height:26.95mm
Blade height:50.00mm
7+7 blades
Fit for OE compressor housing
Tapered tip Angle:30 degree
Forward rotation
Application:
3594043
3545702
3494209
3545509
3594209
3524549
3545531
4027084
3545510
3594199
3594214
3594211
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
