| Brand Name: | NO |
| Model Number: | HX82 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 90.60/141.05mm | Type: | Turbochargers |
|---|

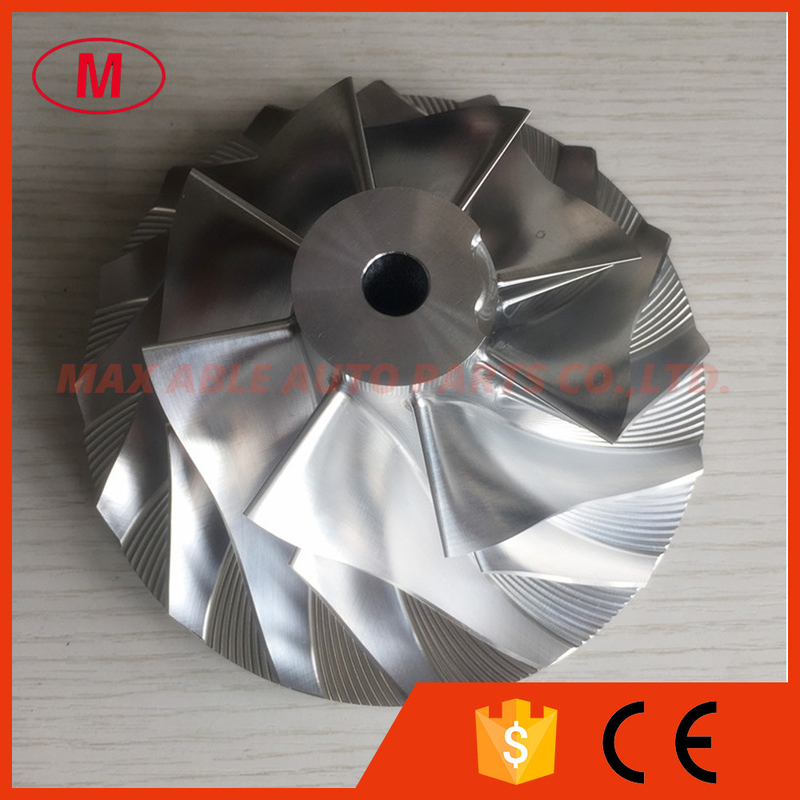

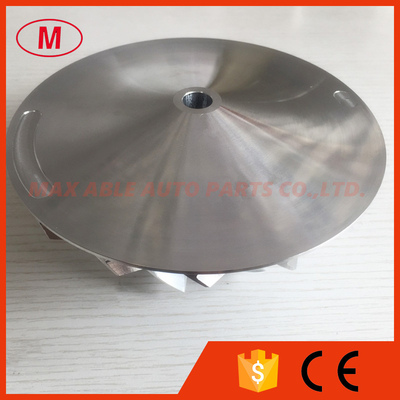

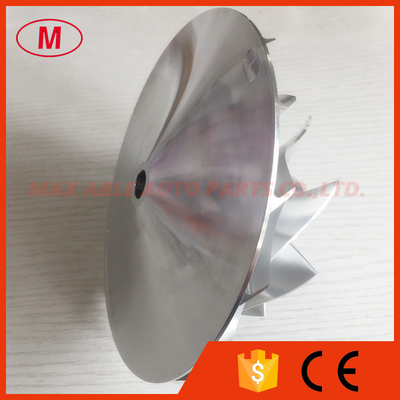

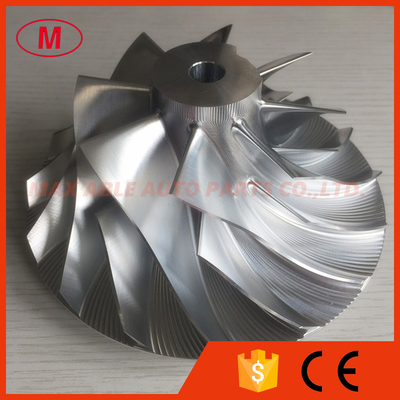

1.HX82 3535772/3533703/3593182 90.60/141.05mm 8+8 blades Turbo Billet/milling/aluminum 2024 compressor wheel for 3529870/3529871/3531940/3594117/3594096/3534243/3599005/3530185/3594151/3594141/3538513/3594151/3596963/3538512/3594149/4038942/3527372/3594174/3590178/3534243/3532946/3537683/3534625/3537685/3529870/3594117/3527372/3804743 / 380474
2.Size:
Nose diameter:35.78mm
Inducer:90.60mm
OE Exducer:141.05mm
Tip height:8.84mm
Superback:10.05mm
Overall height:67.00mm
Bore size:11.12mm
Trailing Angle:60
Cutback:0.00
Fit for OE compressor housing
Blade height:48.66mm
Tapered tip Angle:0 degree
8+8 blades forward rotation
Application:
3529870
3529871
3531940
3594117
3594096
3534243
3599005
3530185
3594151
3594141
3538513
3594151
3596963
3538512
3594149
4038942
3527372
3594174
3590178
3534243
3532946
3537683
3534625
3537685
3529870
3594117
3527372
3804743
380474
3.High quality and competitive price.
4.if you want more details, please send email to me.
We can produce as your requirement.
All the compressor wheel have been balanced.
The more models we also have.
