1. MODEL:GT15-25 forward

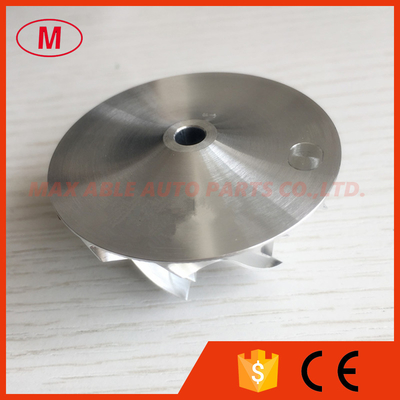

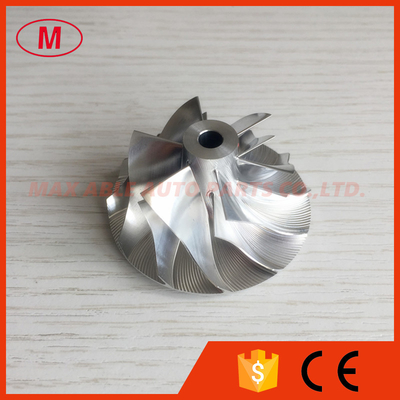

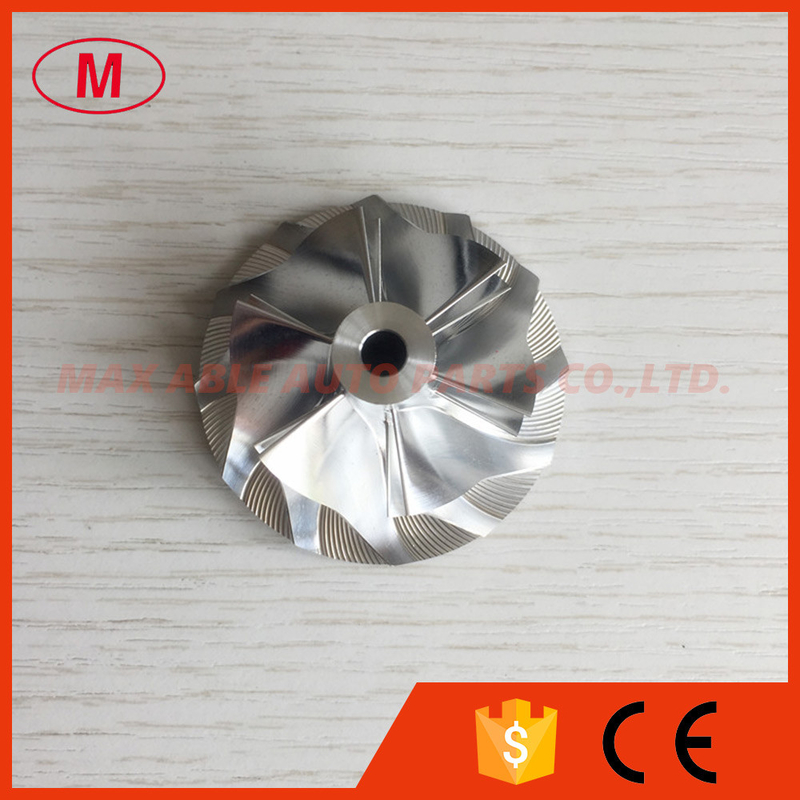

2.GT15-25 6+6 blades 702489-0001/5/4 36.39/49.00mm turbo billet/milling/aluminum 2618 compressor wheel for 717478/716213/716665
3.Size:
Nose diameter:11.77mm
inducer:36.39mm
Exduder:49.00mm
Tip height:3.88mm
Superback:2.40mm
Overall height:24.89mm
bore size :5.08mm
bore type:through
Trailing Angle:45 degree
Cutback:0.0
SP Height angle:-6.50mm
Blades height:19.02mm
Splitter height:13.75mm
Tapered tip Angle:0 degree
6+6 blades
Forward rotation
Fit for OE compressor housing
Application:
717478
716213
716665
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
ALL the billet compressor wheels have been balanced
