| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K04 forward

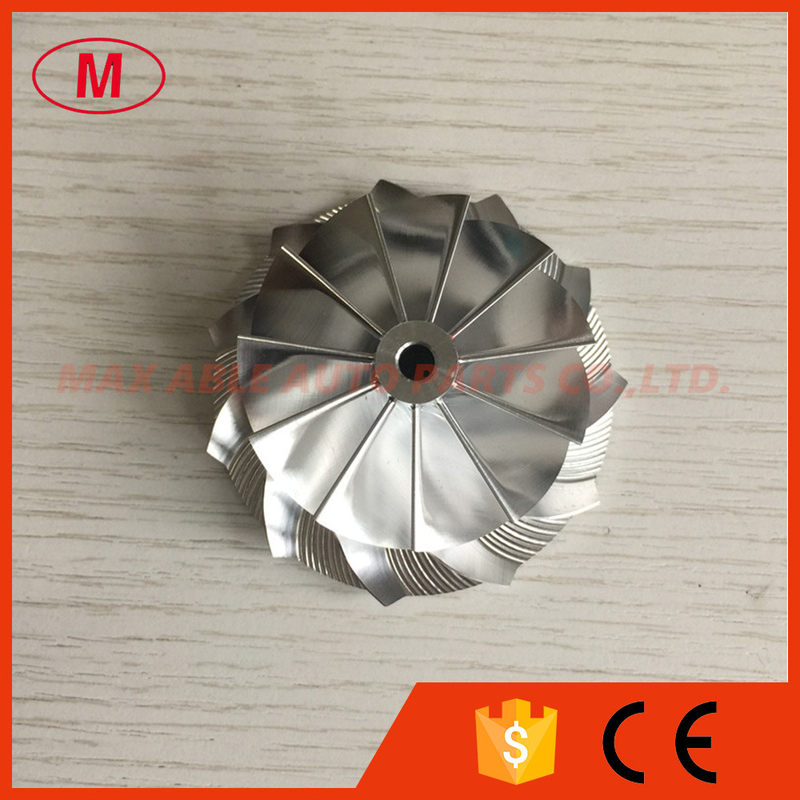

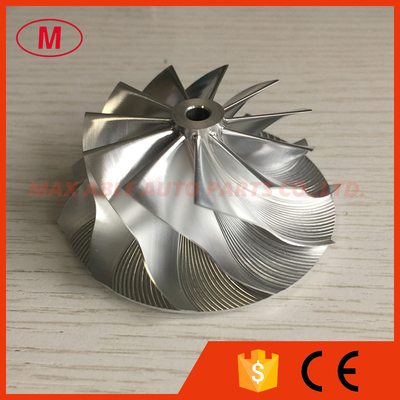

2.46.39/60.00mm 5306-123-2014 Upgrade 11+0 blades high performance turbo aluminum 2618/millining/billet compressor wheel for 5304-970-0064 upgrade
3.SIZE:
Nose Diameter:10.40mm
inducer:46.39mm
Exducer:60.00mm
Tapered tip exducer:63.24mm
Tip height:3.80mm
Superback:1.80mm
Overall height:25.68mm
bore size :4.61mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0
SP height Angle:0.00
Splitter height:0.00mm
Blades height:21.96mm
11+0 blades
Foward rotation
Tapered tip Angle:30 degree

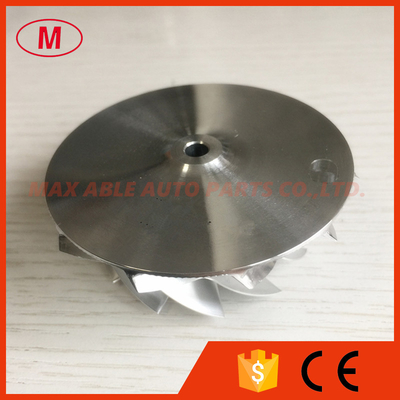

OE size modifed backplate
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
