| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF4H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF4H forward

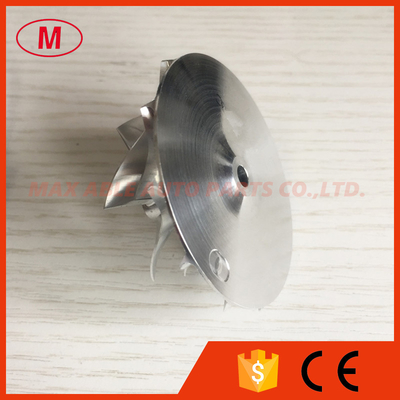

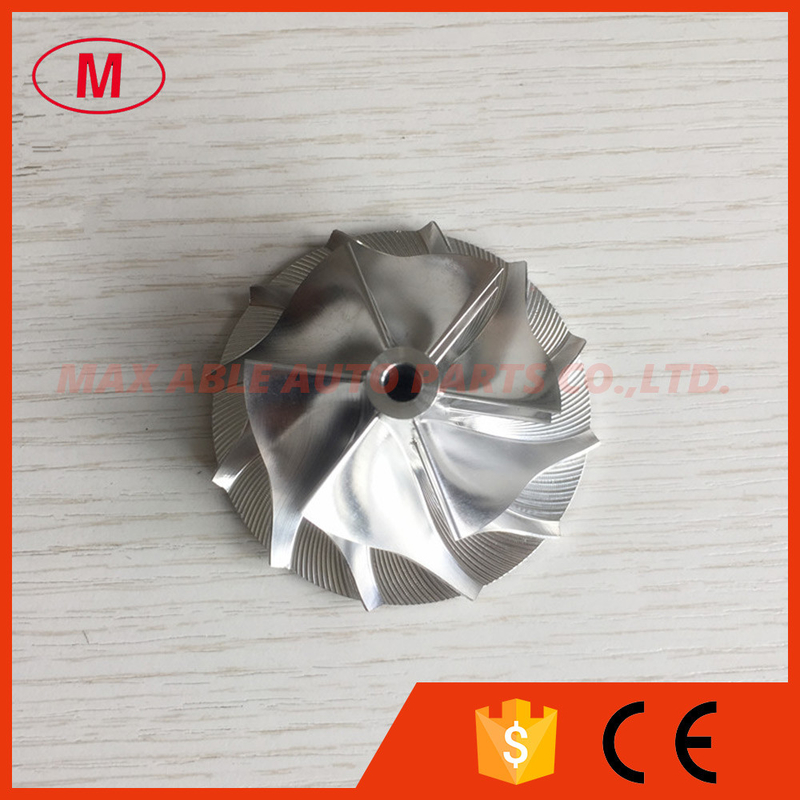

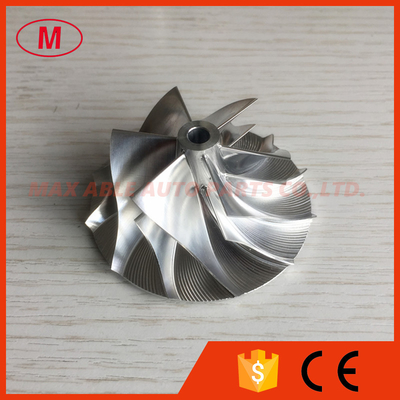

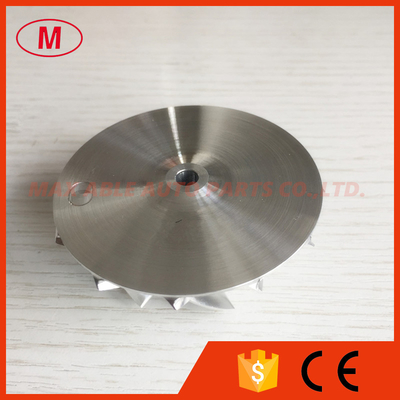

2.RHF4H 43.50/60.00mm 6+6 blades high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:9.90mm
Inducer:43.50mm
exducer:60.00mm
Tapered tip exducer:62.48mm
Tip height :3.15mm
superback:1.32mm
Overall height:27.01mm
Bore size:5.10mm
bore type:through
Trailing Angle:55 degree
Cutback:3.0
Blades height:23.58mm
Splitter height:13.80mm
Sp height angle:1.50
6+6 blades
Forward rotation
Tapered tip Angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
