Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | S200 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |

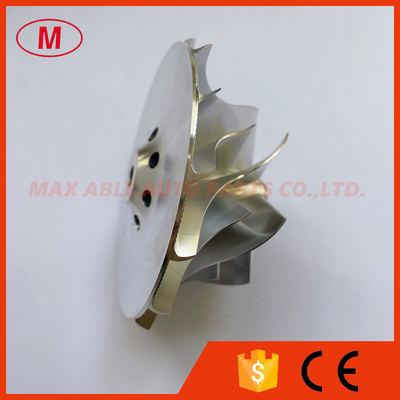

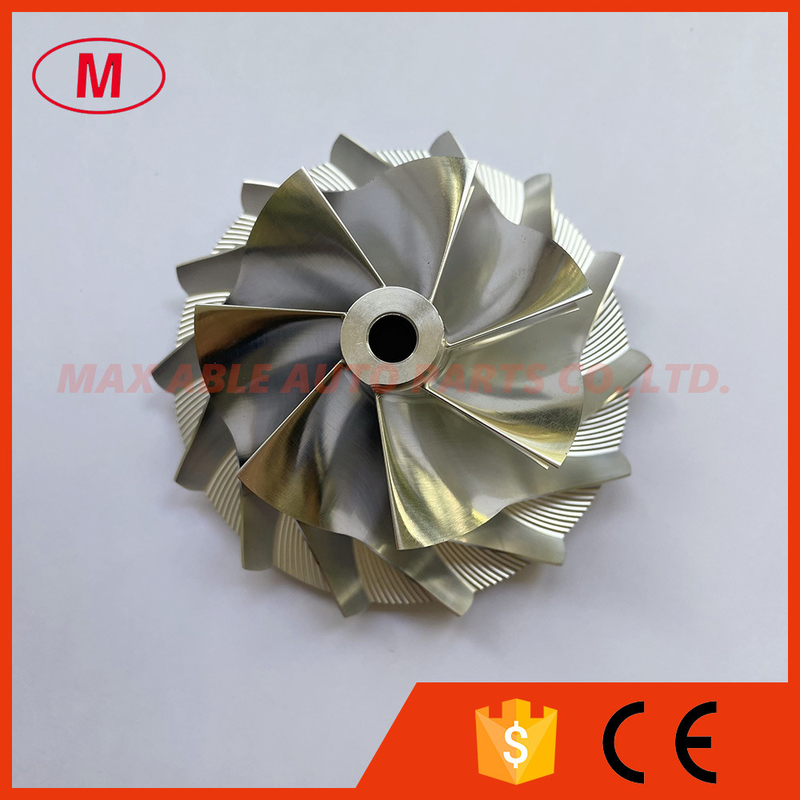

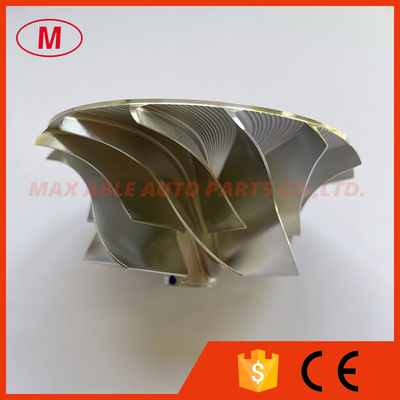

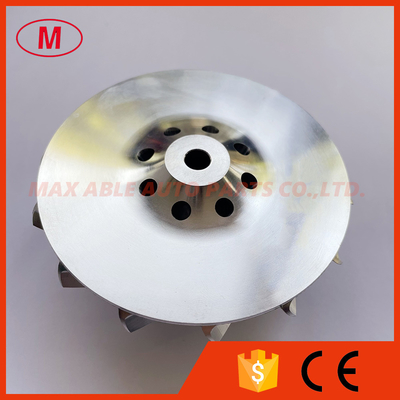

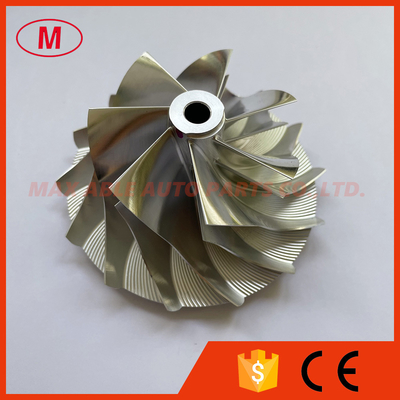

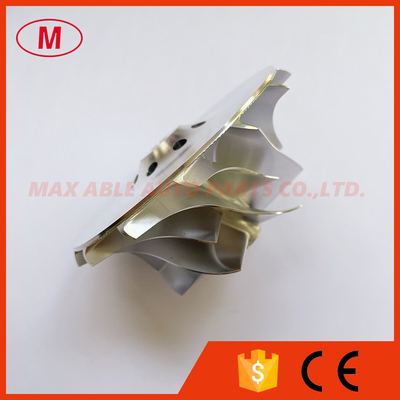

1.S200 61.00/86.00mm 7+7 blades high performance Turbo milling/aluminum 2618/billet compressor wheel
2.Size:
Nose diameter:15.00mm
Inducer:61.00mm
OE Exducer:86.00mm
Tapered tip exducer:91.89mm
Tip height:6.10mm
Superback:5.20mm
Overall height:45.45 mm
Bore size:7.00mm
bore type:through
Trailing Angle:45 degree
Cutback:6.00mm
Splitter height:24.10mm
SP height angle:2.40
Blade height:37.22mm
Tapered tip Angle:31 degree
It is custom size ,please check carefully before buying.
3.High quality and competitive price.
4.if you want more details, please send email to me.
We can produce as your requirement.
All the compressor wheels have been balanced.
The more models we also have.
