1. MODEL:G30-770 forward

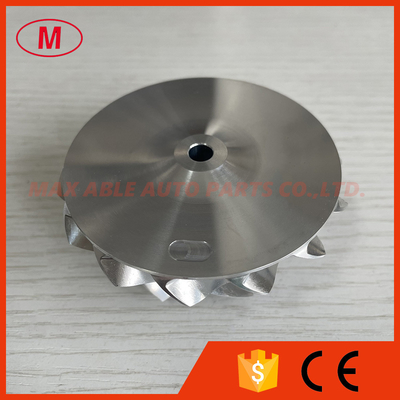

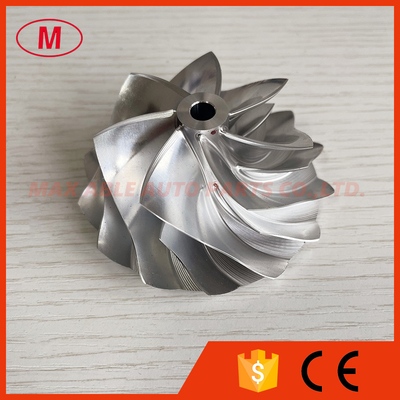

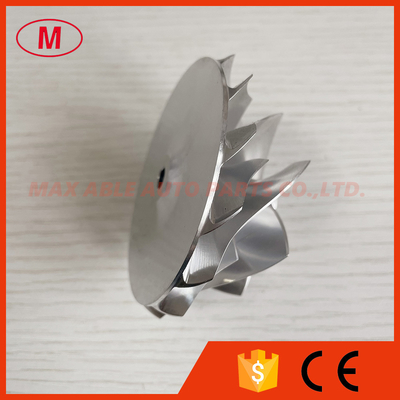

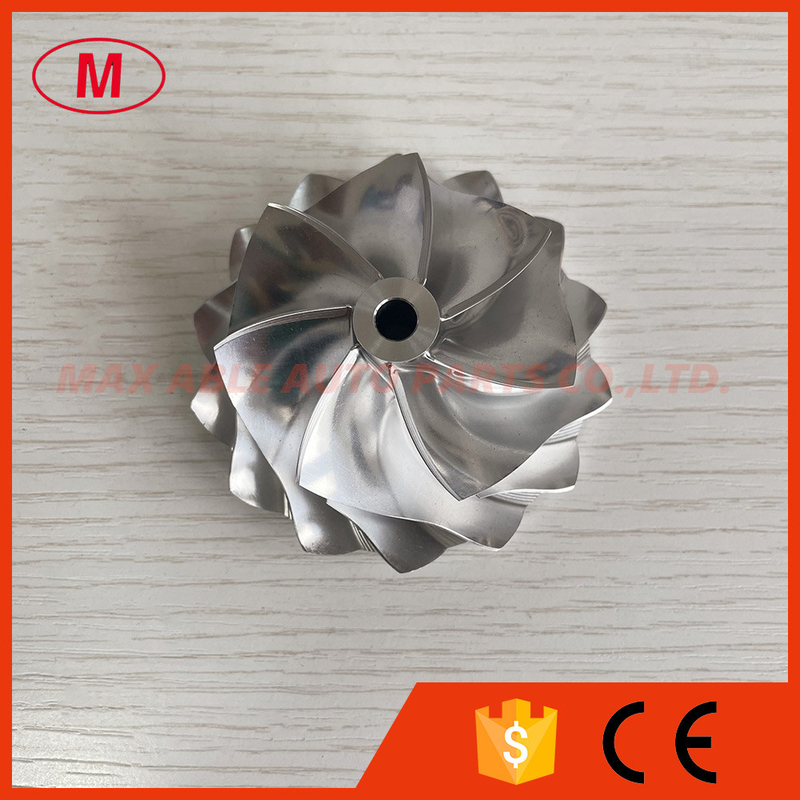

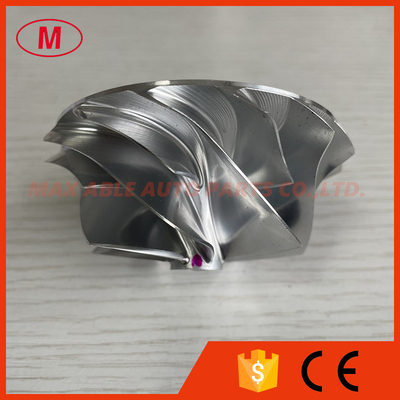

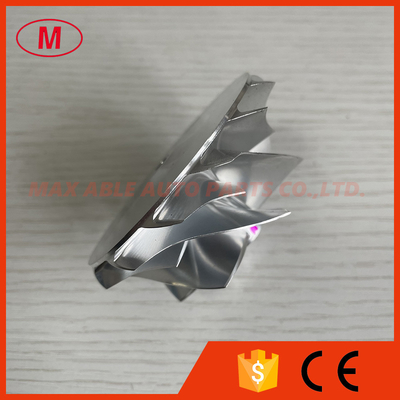

2.G30-770 57.52/71.40mm 7+7blades LEP Style Performance Billet/milling/aluminum 2618 compressor wheel for 880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
3.Size:
Nose diameter:13.10mm
Inducer:57.52mm
exducer:71.40mm
Tapered tip exducer:77.79mm
Tip height:6.73mm
Superback:1.75mm
bore size :6.35mm
bore type:through
Overall height:35.23mm
Cutback:6.70mm
Trailing Angle:35 degree
SP height angle:-5.00
Splitter height:16.00mm
Blade height:31.48mm
7+7 blades forward
Fit for OE compressor housing
Tapered tip Angle:11.4 degree
Application:
880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement ,the minimun order is 5pcs
All the compressor wheel have been balanced.
